GForce Hellcat 9" IRS Complete Kit
Price:
$8,499.00
Make
Challenger
Charger
*
Transmission
Manual
Automatic
*
Gear Selection
3.00
3.25
3.40
3.50
3.70
3.89
4.11
4.30
*
Quantity
add to cart buy now
Details:

The GForce Engineering fully-fabricated 9" IRS for the 2015+ Dodge Charger and Challenger Hellcat, SRT and Scat Pack is a complete bolt-in** independent rear suspension that replaces your drive-line from the transmission back. Includes a fabricated 9" housing that bolts to the stock differential mounting points, Modified Rear Cradle w/ HD Bushing Kit installed, Strange Aluminum HD Third Memeber w/ an Eaton tru Trac and Your choice of gears, GForce bullet-proof Outlaw axles, 35-spline inner stubs, New outer stubs, and the option for a Chromoly 2pc Driveshaft.

It's no secret that stock IRS components can be a real weak point in these cars. Once power levels exceed the limitations of the stock diff, upgraded axles may hold up, but they expose the weak points in the differential. This is where the GForce 9" becomes a necessary upgrade.

The 9" IRS kit eliminates the flex, noise, "clunking" and weak points of the OEM rear. Plus, you have the confidence knowing you are putting your power through a race-proven bulletproof rear end, but you get all the benefits and advantages an IRS can provide. In addition, the GForce 9" kit comes standard with 35 spline inner stubs. In fact it is the only 9" IRS on the market with the beefy 35-Spline inner axle stubs.

The GForce 9" has been proven to support 2000+ in "real-world" applications. The GForce 9" kit holds IRS records in the ¼ mile, standing mile and 2-mile in wheel standing IRS vehicles. It's safe the say the misconception that you cannot put power through an IRS and make it live has been officially debunked.

All GForce Engineering 9" housings are one-piece, laser cut, CNC bent and tig welded for flawless finish and unmatched strength. 9" kits can be purchased as a complete kit with pumpkin and driveshaft. Our preferred provider is Strange Engineering. GForce can also make you driveshafts specifically designed to work with the 9" replacement rear and most common transmission options. If you are looking for something other than the options provided here. Please call out tech lines at (540) 384-0682

More about GForce Engineering Outlaw Axles
GForce Engineering Outlaw axles are CNC machined from aerospace billet alloy. The proprietary material has been closely compared to the popular 300m alloy. In both our testing and in third party testing, we have found our alloy to have a higher tensile strength making it a stronger axle than comparable 300m axles. In addition, these axles are engineered to absorb the "shock" of a hard launch.

The real strength of the GForce Outlaw axles comes from the billet, CNC machined CV internals. Traditional CV's in this size would use 28-spline axles and "CV stars". In this case, GForce machines billet 31 spline stars and 31 spline axles. This provides tighter tolerances and less wear as well as additional strength from premium materials and more spline engagement.

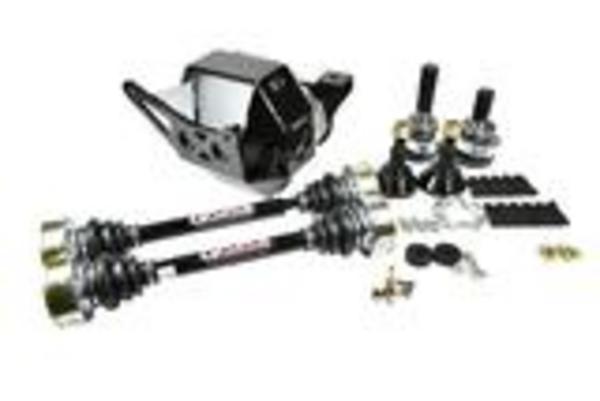

GForce 9" Kits Include the following:
? Fabricated 9" housing (bolts to factory locations)
? Heavy-duty front mount
? Solid aluminum or poly bushings
? 35 Spline Inner and Outer Stubs
? Outlaw 9" axles
? All necessary hardware
? Third member to housing
? Housing and front mount to cradle
? Your choice of third member: Pro-Iron or HD aluminum (Strange)
? Your choice of driveshaft: 4" aluminum

*If you are interested in 31 spline diffs, the GForce 9" can be ordered with 31-spline inner stubs. Please call for more information on this application.
**Some exhaust modifications necessary.
